Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump
| Tempat asal | CINA |
|---|---|
| Nama merek | CSQ |
| Sertifikasi | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Nomor model | Produk yang disesuaikan |
| Kuantitas min Order | 20-50 PC |
| Harga | negotiable |
| Kemasan rincian | Kotak Busa+Karton |
| Waktu pengiriman | 20-45 hari kerja |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 2000pcs per bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| nama | Bantalan geser keramik yang disesuaikan | Kategori | Bantalan pompa keramik |
|---|---|---|---|
| Bahan | Silikon karbida silikon/zirkonia tanpa tekanan | Ukuran | Disesuaikan, menurut gambar |
| Menggunakan | pompa motor kalengan | Kemasan | Kotak Busa+Karton |
| kata kunci | bantalan pompa motor kalengan | Jenis | Bagian transmisi penting |
Deskripsi Produk

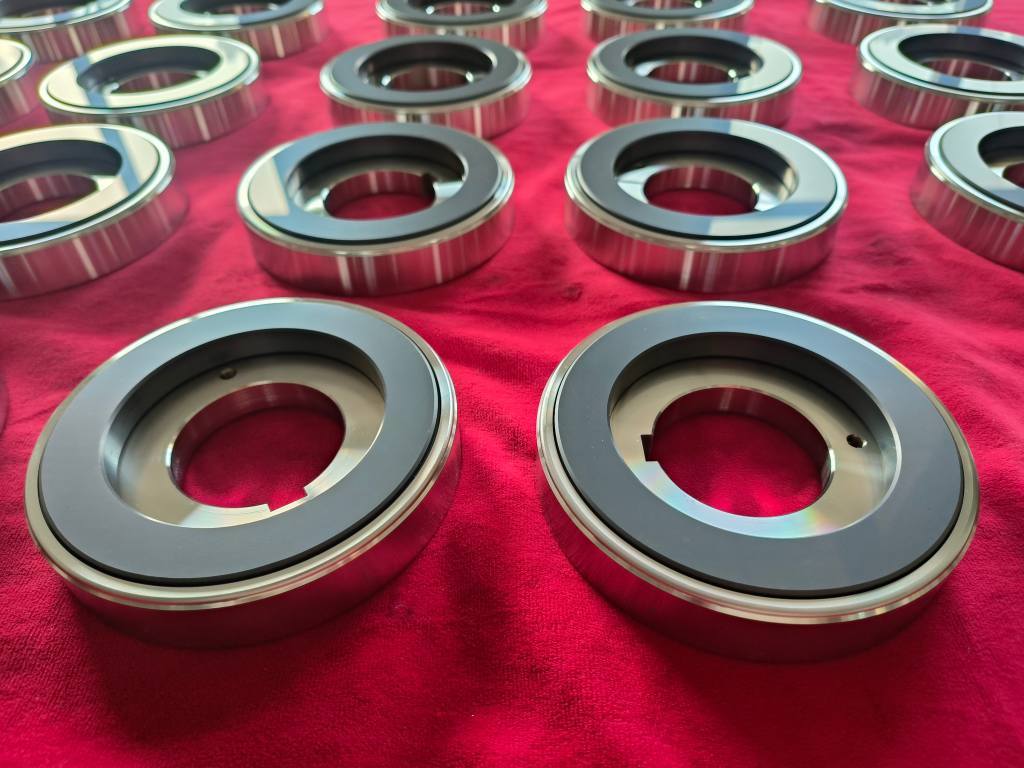

Sliding Bearing SiC Sleeve for Canned Motor Pump
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly
The Sleeve and Thrust Disc Assembly is a critical component of sliding bearings, serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC) is renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, making it one of the most ideal sliding bearing materials for such pumps.
Key Features
- Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
- Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
- Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
- Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
- Chemical process pumps, nuclear coolant systems
- High-purity fluid transfer (e.g., semiconductor-grade chemicals)
- Sealless solutions for extreme pressure/temperature conditions
Main Applications of Canned Motor Pump
- Used in common corrosive conditions with inorganic matter, acid, alkaline and salt media (SSiC as standard sliding bearing)
- Used in corrosive conditions with media that vaporizes easily
Key Properties of Pressureless Sintered Silicon Carbide
| Max Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10⁻⁶/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Our Factory and Processing Capabilities
We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering and processing machinery.
