SiC Thrust Washer for Canned Motor Pumps
| Tempat asal | CINA |
|---|---|
| Nama merek | CSQ |
| Sertifikasi | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Nomor model | Produk yang disesuaikan |
| Kuantitas min Order | 20-50 PC |
| Harga | negotiable |
| Kemasan rincian | Kotak Busa+Karton |
| Waktu pengiriman | 20-45 hari kerja |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 2000pcs per bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| nama | Bantalan geser keramik yang disesuaikan | Kategori | Bantalan pompa keramik |
|---|---|---|---|
| Bahan | Silikon karbida sinter tanpa tekanan+baja tahan karat | Ukuran | Disesuaikan, menurut gambar |
| Menggunakan | pompa motor kalengan | Kemasan | Kotak Busa+Karton |
| kata kunci | bantalan pompa motor kalengan | Jenis | Bagian transmisi penting |
Deskripsi Produk

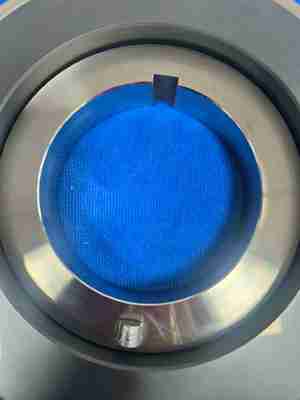

SiC Thrust Washer for Canned Motor Pumps
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly
Description of Sliding Bearing for Canned Motor Pump:
The Sleeve and Thrust Disc Assembly is a part of sliding bearing. It serves as a critical transmission component, functioning as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.
Key Features:
- Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
- Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
- Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
- Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses:
- Chemical process pumps, nuclear coolant systems
- High-purity fluid transfer (e.g., semiconductor-grade chemicals)
- Sealless solutions for extreme pressure/temperature conditions
Main application of Canned Motor Pump:
- The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.
- The canned motor pump can be used in common corrosive conditions, and the medium easy to vaporize.
Key properties of pressureless sintered silicon carbide:
| Max Temperature up to 1650℃ |
| Low density: 3.15-3.18 g/cm³ |
| High strength |
| Low thermal expansion: 4.0 (10⁻⁶/℃) |
| High thermal conductivity: 120 W/m°K |
| High hardness: 2800 HV5 |
| High elastic modulus: 410GPa |
| Superior chemical stability, resistance to acid and alkali corrosion (including hydrofluoric acid) |
Our factory and processing machine:
We have three factories in China, can meet the needs for different customers, and also we have advanced pressing, sintering and processing machines.
