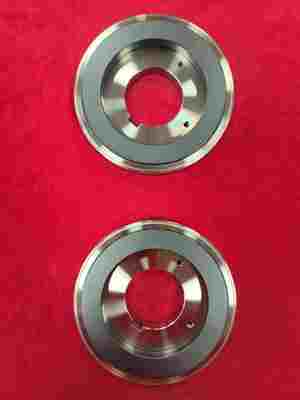

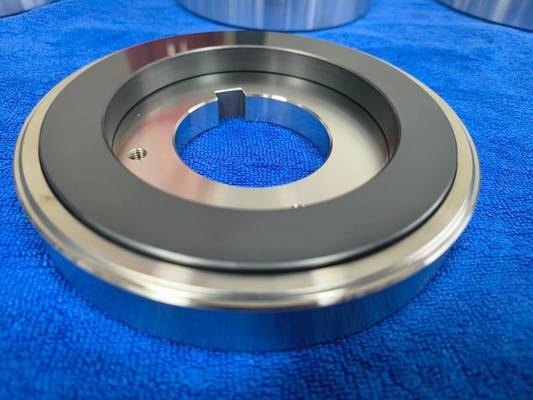

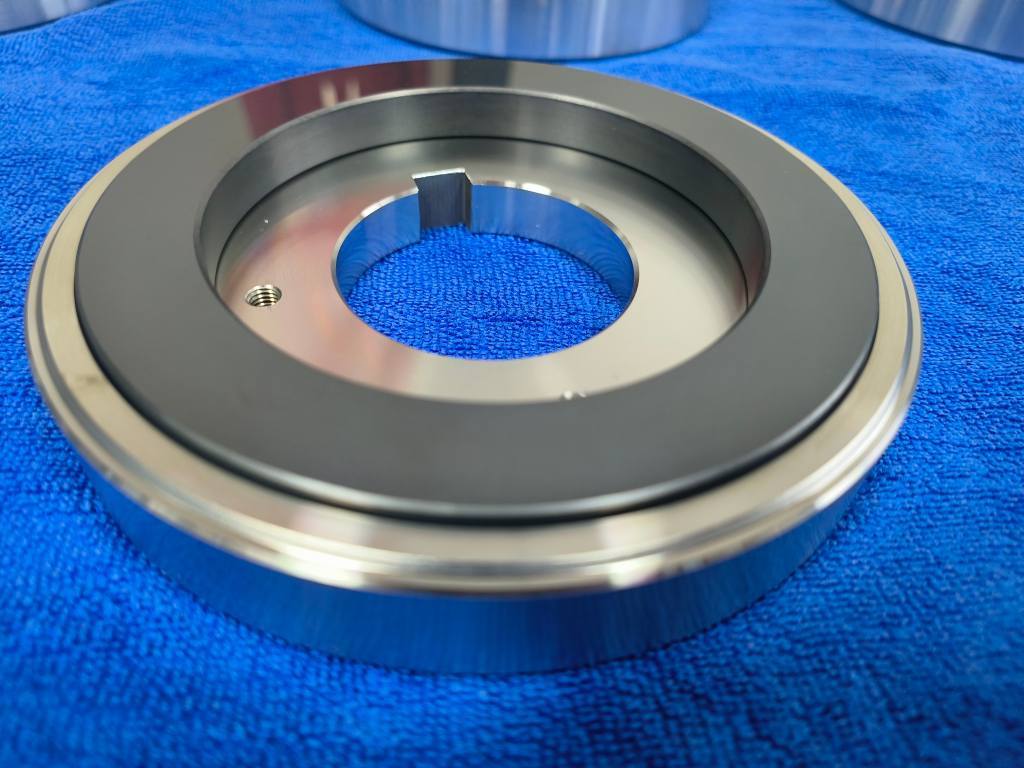

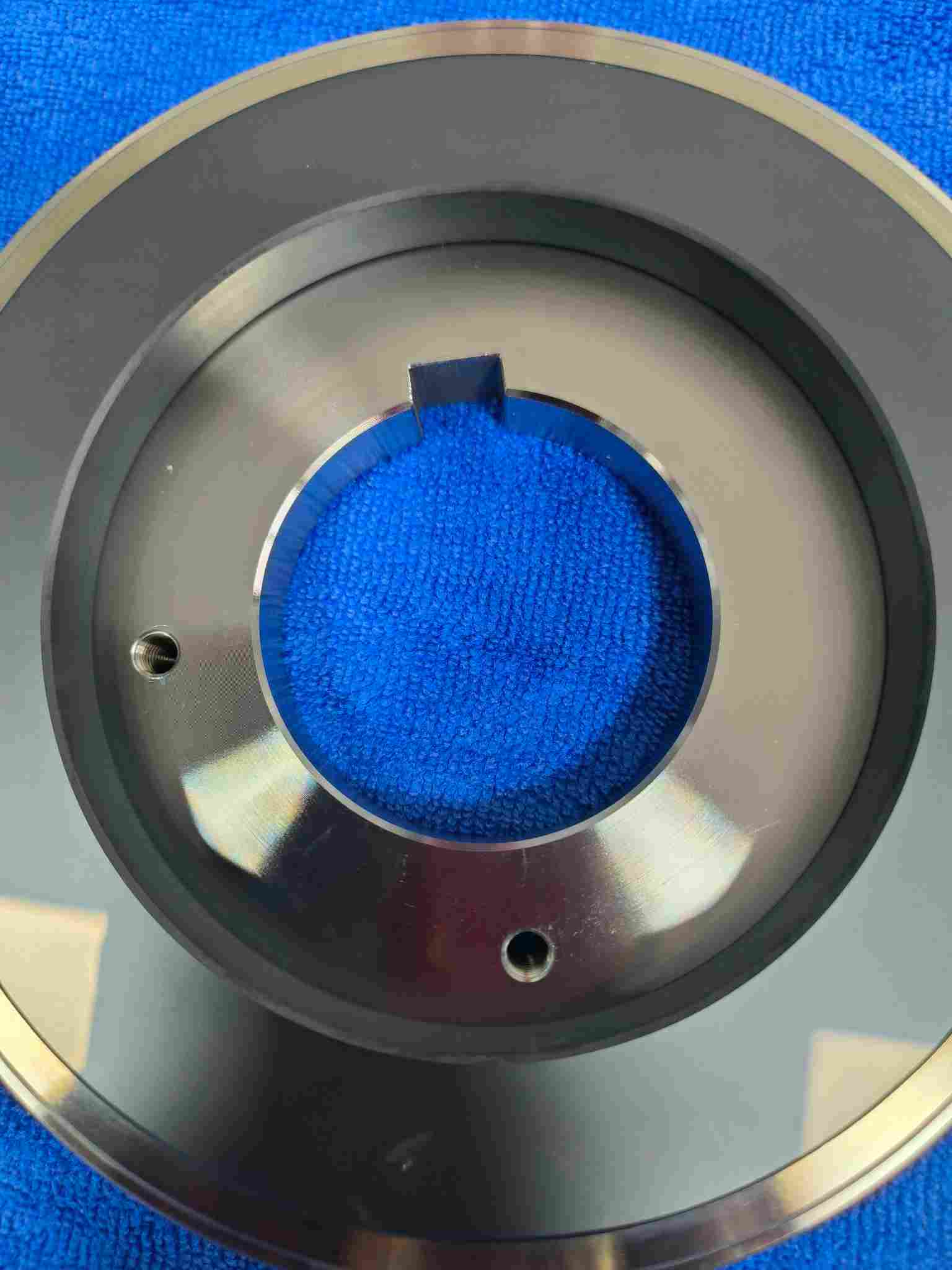

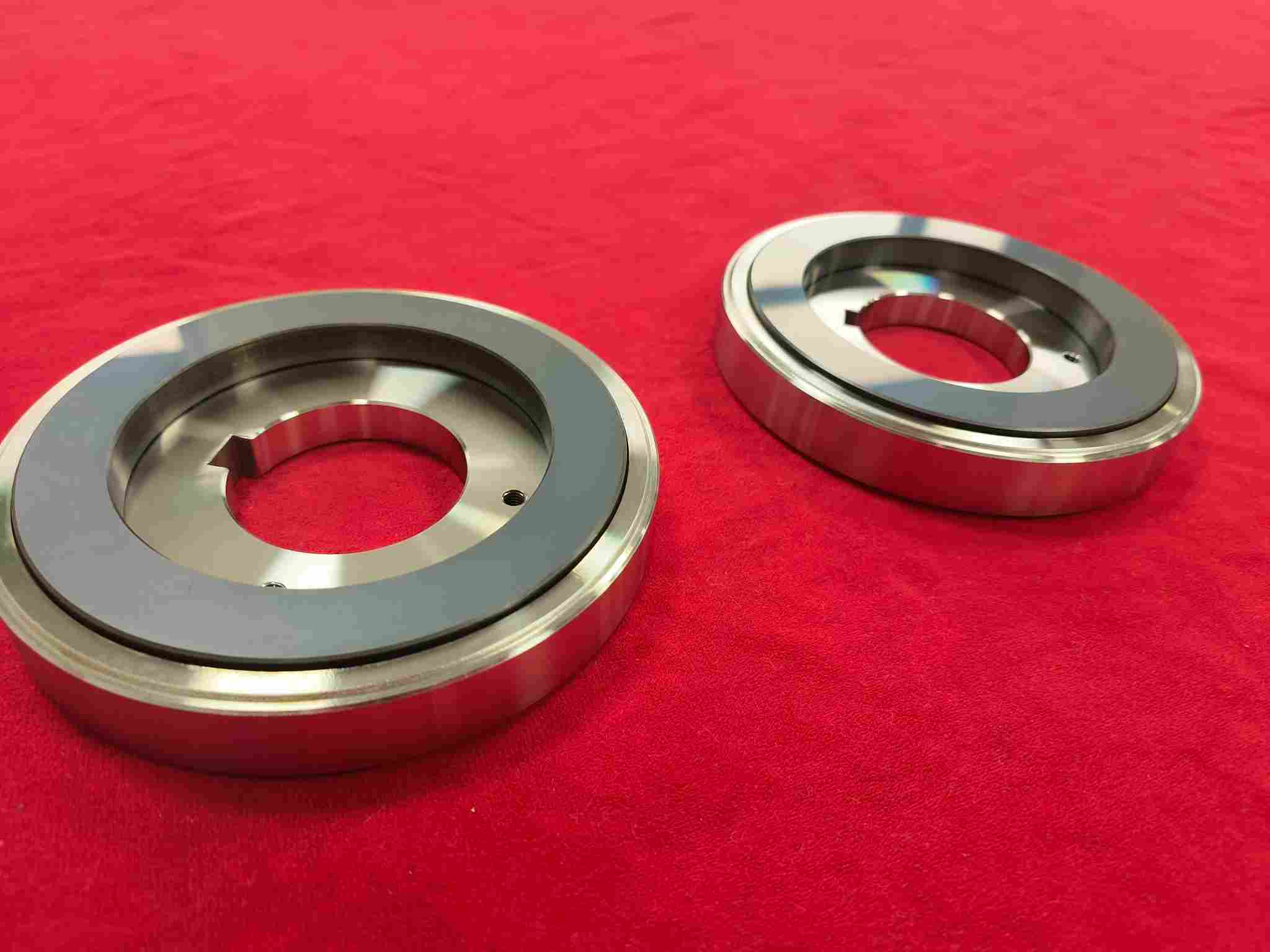

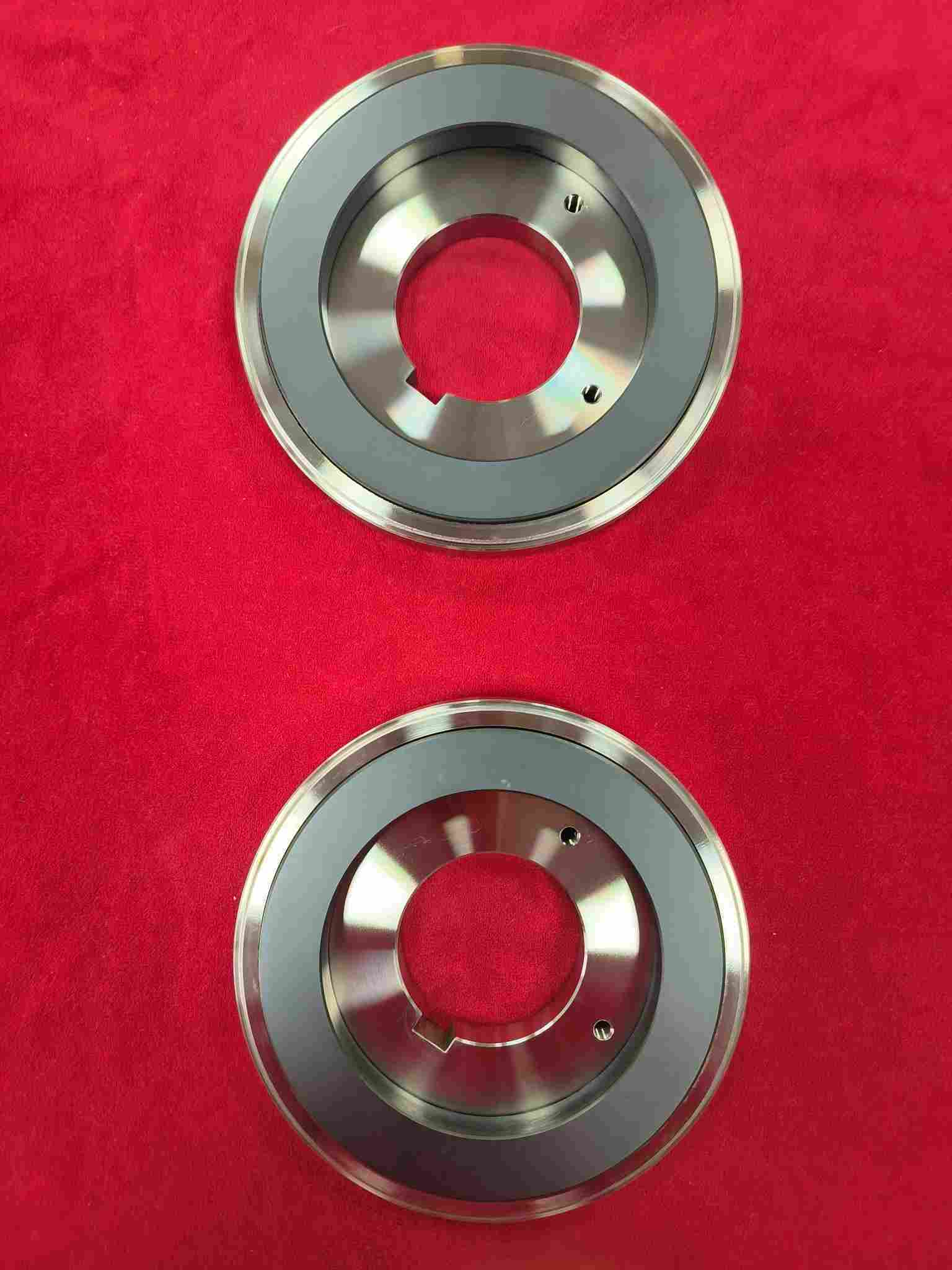

Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps

Tempat asal	Tiongkok
Nama merek	CSQ
Sertifikasi	FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Nomor model	Produk yang disesuaikan
Kuantitas min Order	20-50 PC
Harga	negotiable
Kemasan rincian	Kotak Busa+Karton
Waktu pengiriman	20-45 hari kerja
Syarat-syarat pembayaran	T/T
Menyediakan kemampuan	2000pcs per bulan

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

Detail produk

Nama	Bantalan geser keramik yang disesuaikan	Kategori	Bantalan pompa keramik
Bahan	Silikon karbida sinter tanpa tekanan+baja tahan karat	Ukuran	Disesuaikan, menurut gambar
Menggunakan	pompa motor kalengan	Kemasan	Kotak Busa+Karton
Kata kunci	bantalan pompa motor kalengan	Jenis	Bagian transmisi penting
Menyoroti	Pressureless Sintered Silicon Carbide Thrust Washer , Thermal Stability Ceramic Sliding Bearing , Customizable Silicon Carbide Bearing

Tinggalkan pesan

Deskripsi Produk

SiC Thrust Washer for Canned Motor Pumps

Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly

The Sleeve and Thrust Disc Assembly is a critical component of sliding bearings, serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC) is renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, making it one of the most ideal sliding bearing materials for such pumps.

Key Features

Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
Customizable: Available in standard or integrated designs to fit various pump models.

Typical Applications

Chemical process pumps, nuclear coolant systems
High-purity fluid transfer (e.g., semiconductor-grade chemicals)
Sealless solutions for extreme pressure/temperature conditions

Main Applications of Canned Motor Pumps

Common corrosive conditions, such as inorganic matter, acid, alkaline and salt media (SSiC is standard sliding bearing material)
Corrosive conditions with media prone to vaporization

Key Properties of Pressureless Sintered Silicon Carbide

Property	Value
Max Temperature	Up to 1650℃
Density	3.15-3.18 g/cm³
Thermal Expansion	4.0 (10⁻⁶/℃)
Thermal Conductivity	120 W/m°K
Hardness	2800 HV5
Elastic Modulus	410GPa
Chemical Stability	Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
