Precision Machined SSIC Bushing for High-Temperature Canned Motor Pumps
| Tempat asal | Tiongkok |
|---|---|
| Nama merek | CSQ |
| Sertifikasi | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Nomor model | Produk yang disesuaikan |
| Kuantitas min Order | 20-50 PC |
| Harga | negotiable |
| Kemasan rincian | Kotak Busa+Karton |
| Waktu pengiriman | 20-45 hari kerja |
| Syarat-syarat pembayaran | T/T |
| Menyediakan kemampuan | 2000pcs per bulan |
Hubungi saya untuk sampel dan kupon gratis.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama | Bantalan geser keramik | Kategori | Bantalan pompa keramik |
|---|---|---|---|
| Bahan | Silikon karbida sinter tanpa tekanan＋Stalin less304 | Ukuran | Disesuaikan, menurut gambar |
| Menggunakan | pompa motor kalengan | Kemasan | Kotak Busa+Karton |
| Kata kunci | bantalan pompa motor kalengan | Jenis | Bagian transmisi penting |
| Menyoroti | Precision Machined SSIC Bushing,Pressureless Sintered Silicon Carbide Bearing,1650℃ Maximum Temperature Ceramic Sliding Bearing |
||
Deskripsi Produk
Precision Machined SSIC Bushing
Precision Machined SSIC Bushing for Canned Motor Pump designed specifically for canned motor pumps, featuring customized designs and materials for high-temperature applications.
Key Specifications
| Attribute | Value |
|---|---|
| Name | Ceramic Sliding Bearing |
| Category | Ceramic pump bearing |
| Material | Pressureless sintered silicon carbide/Zirconia |
| Size | Customized according to drawings |
| Use | Canned motor pump |
| Package | Foam + carton box |
The sliding bearing serves as a crucial transmission component, functioning as both the support and rotary unit in canned motor pumps. Silicon carbide (SSiC) is an exceptional material choice for these bearings due to its outstanding corrosion resistance, wear resistance, and superior mechanical properties.
Primary Applications
- Ideal for canned motor pumps operating in corrosive environments with inorganic matter, acids, alkalis, and salts (SSiC standard bearing)
- Suitable for canned motor pumps handling media prone to vaporization
Material Properties
| Property | Value |
|---|---|
| Maximum Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |

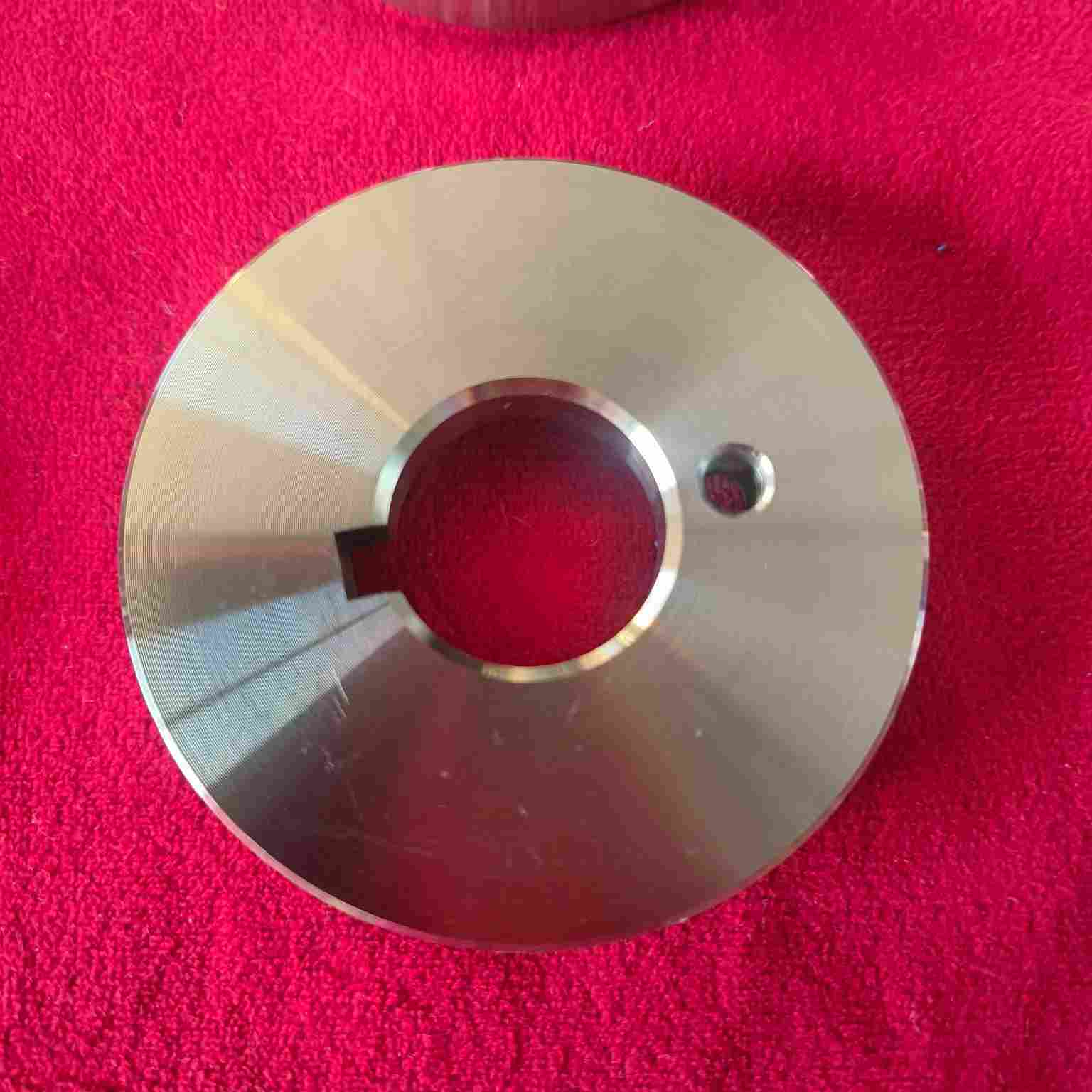

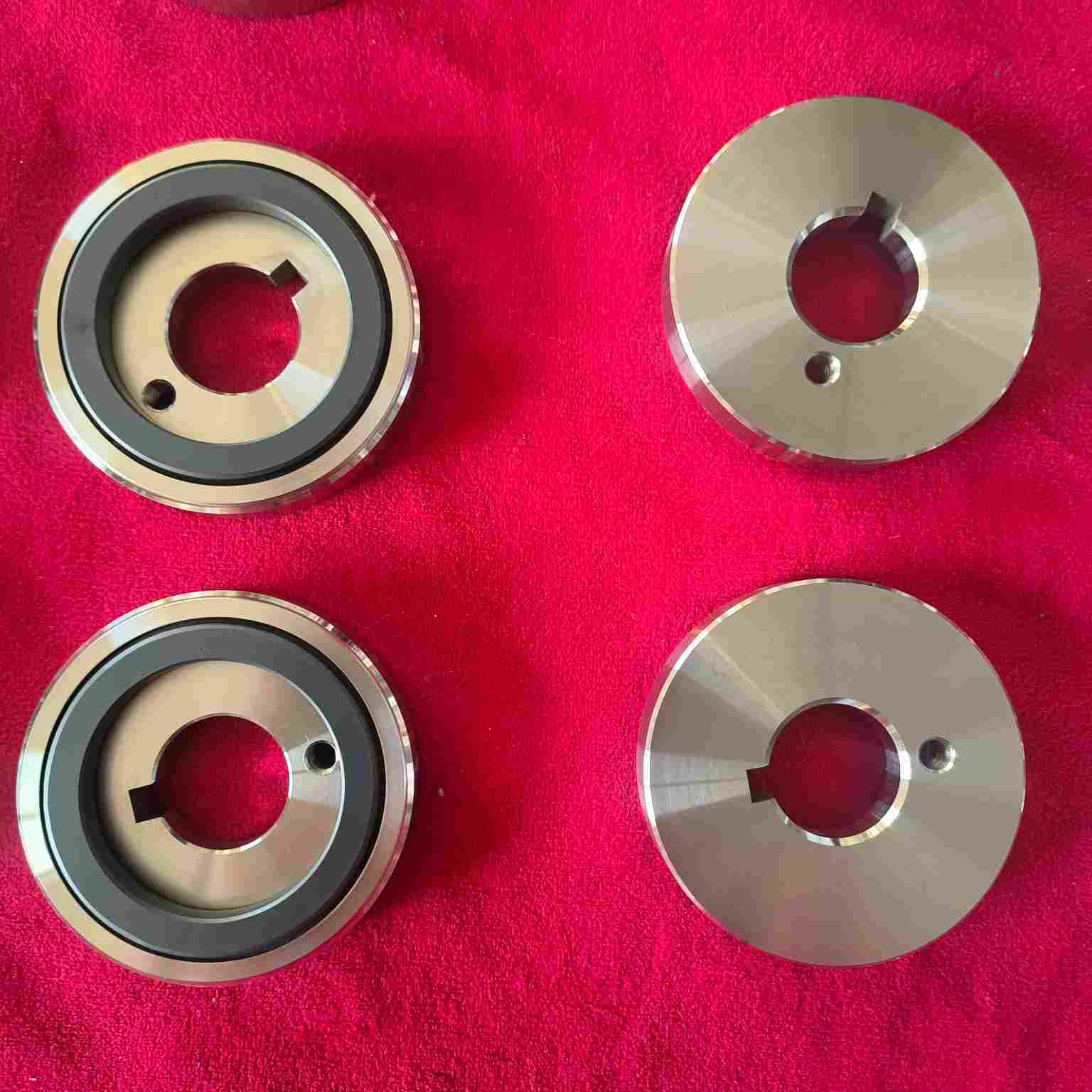

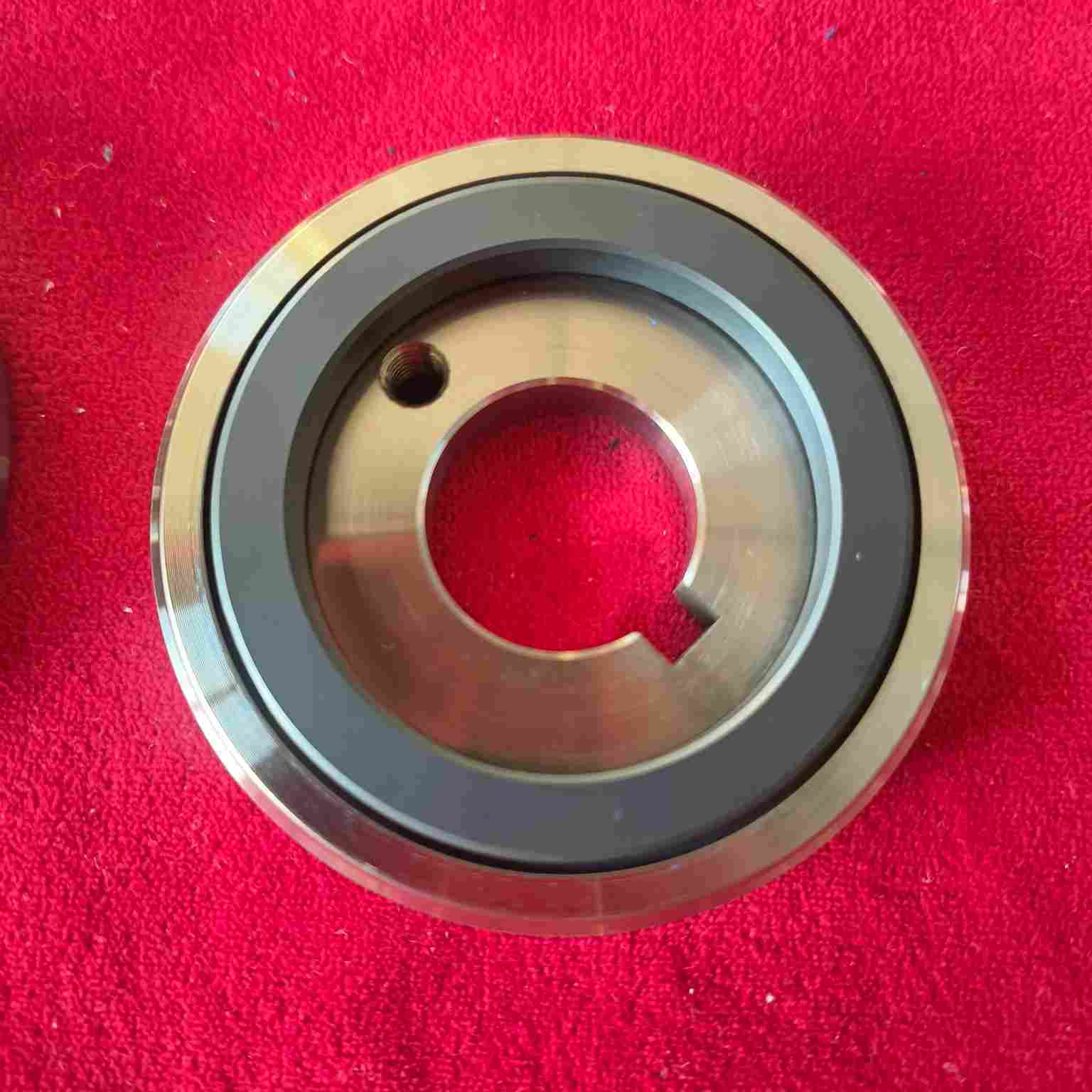

Product Images
Manufacturing Capabilities
We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.
Production line for ceramic bearings
Precision machining process
Quality control inspection
