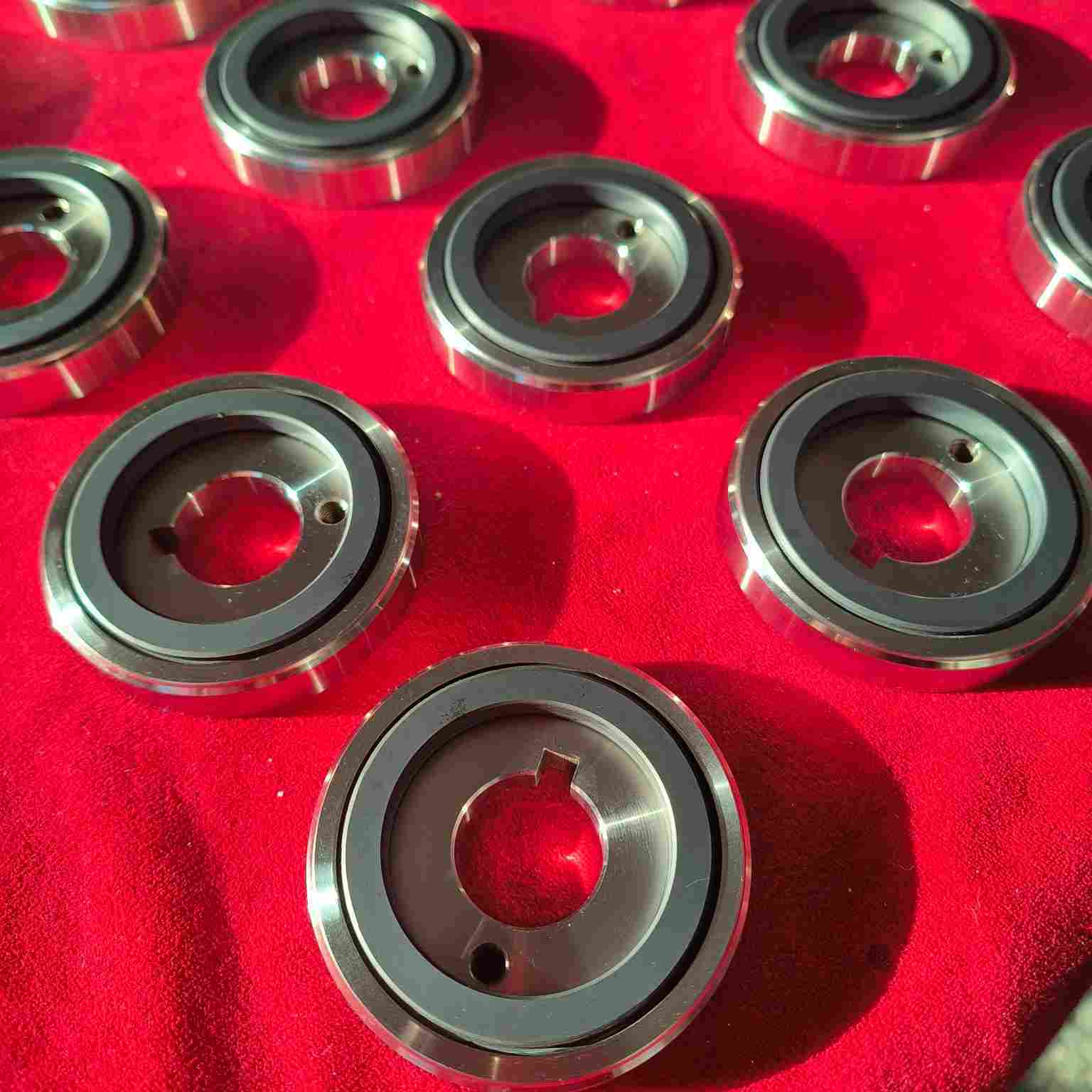

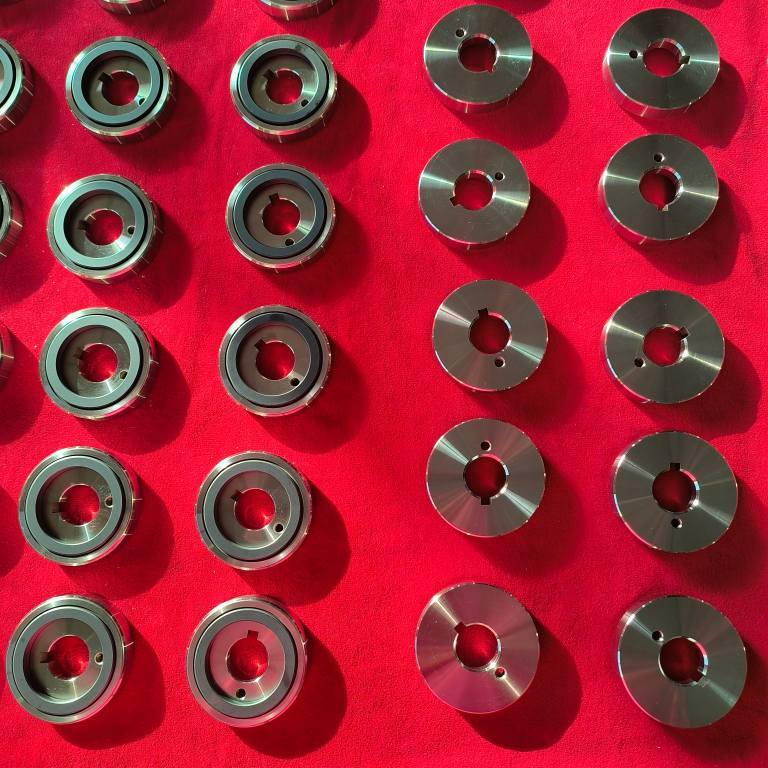

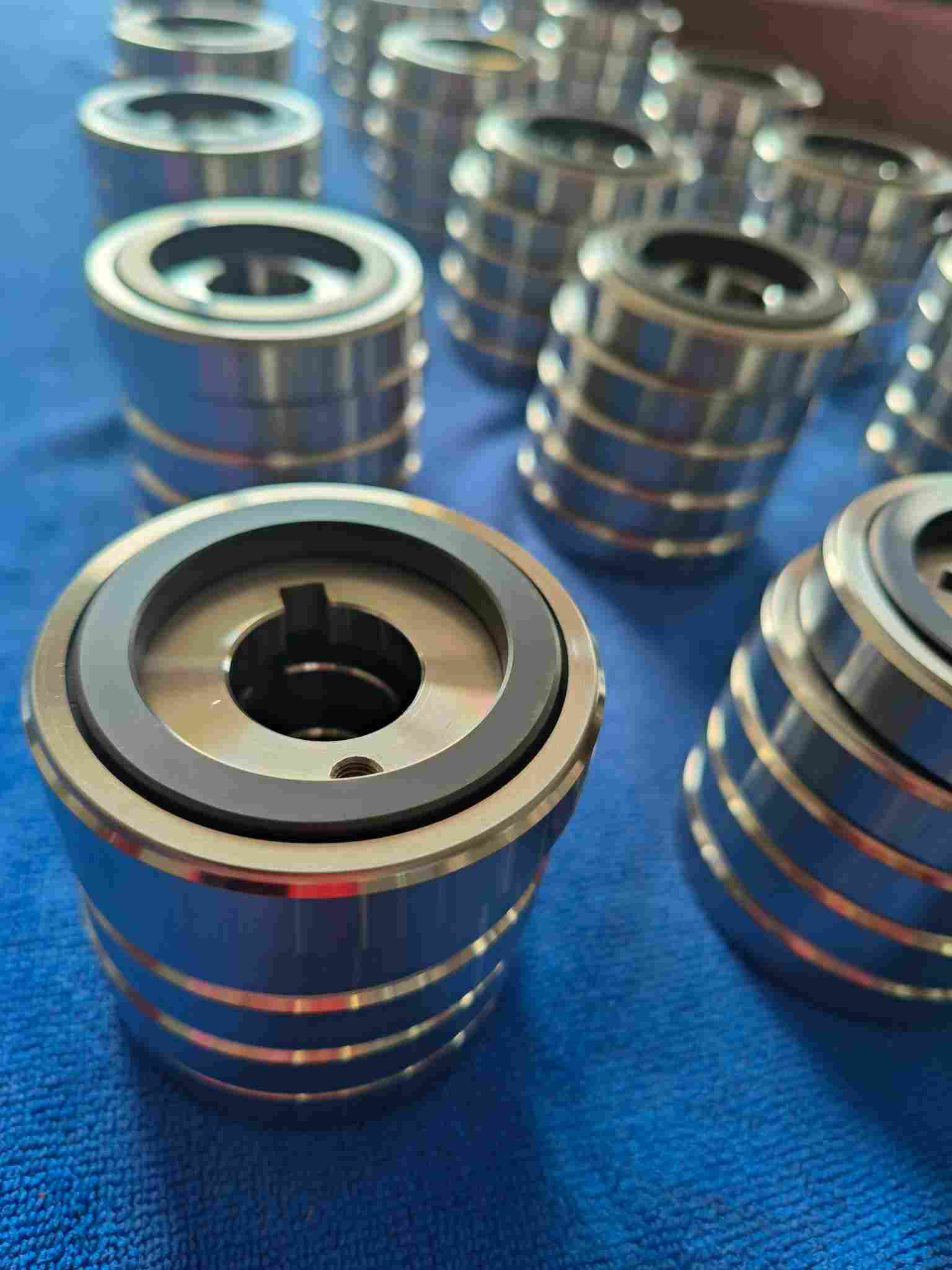

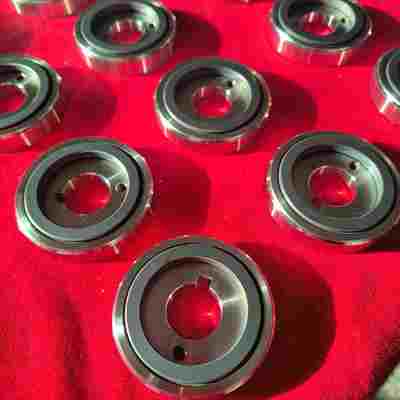

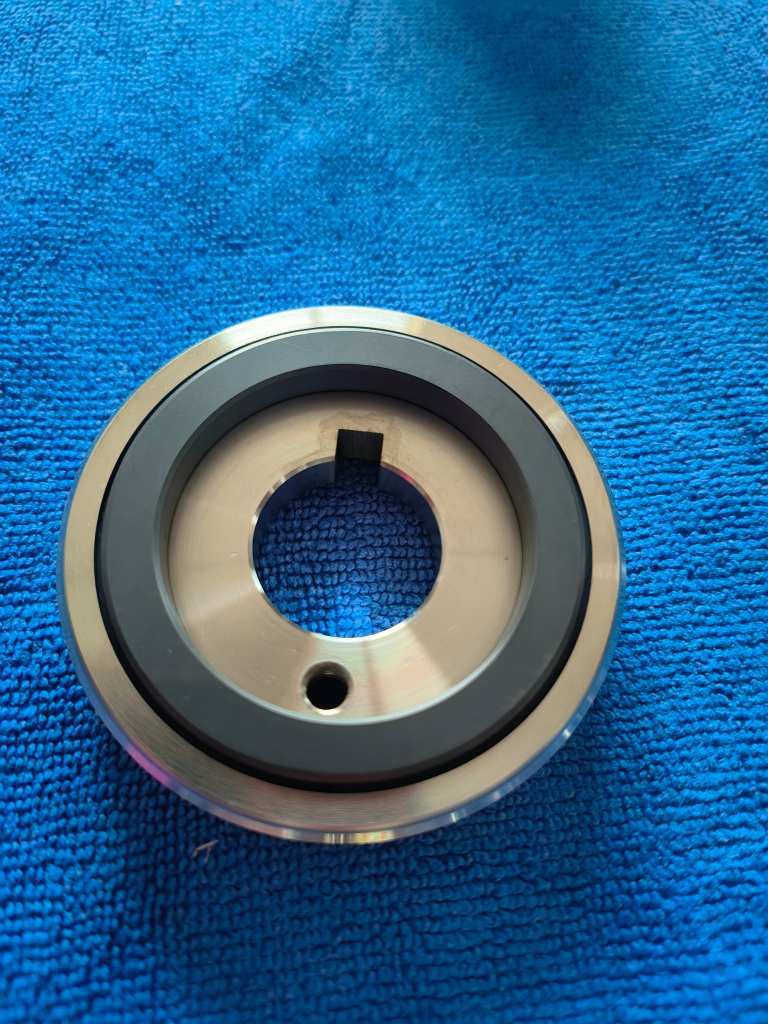

SiC Thrust Washer Sliding Bearing for Canned Motor Pump

  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
Tempat asal Tiongkok
Nama merek CSQ
Sertifikasi FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Nomor model Produk yang disesuaikan
Kuantitas min Order 20-50 PC
Harga negotiable
Kemasan rincian Kotak Busa+Karton
Waktu pengiriman 20-45 hari kerja
Syarat-syarat pembayaran T/T
Menyediakan kemampuan 2000pcs per bulan

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Bantalan geser keramik yang disesuaikan Kategori Bantalan pompa keramik
Bahan Silikon karbida sinter tanpa tekanan+baja tahan karat Ukuran Disesuaikan, menurut gambar
Menggunakan pompa motor kalengan Kemasan Kotak Busa+Karton
Kata kunci bantalan pompa motor kalengan Jenis Bagian transmisi penting
Menyoroti

Thermal Stable SiC Sleeve Sliding Bearing

,

High Hardness Ceramic Sliding Bearing

,

Low Thermal Expansion Canned Motor Pump Bearing
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Tinggalkan pesan
Deskripsi Produk
SiC Sleeve Sliding Bearing for Canned Motor Pump
The Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly is a critical transmission component serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.
Key Features
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main Application of Canned Motor Pump
  1. The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.
  2. The canned motor pump can be used in common corrosive conditions with media that are easy to vaporize.
Key Properties of Pressureless Sintered Silicon Carbide
Property Value
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 0
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 1
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 2
Our Factory and Processing Machines
We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines.
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 3
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 4
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 5
